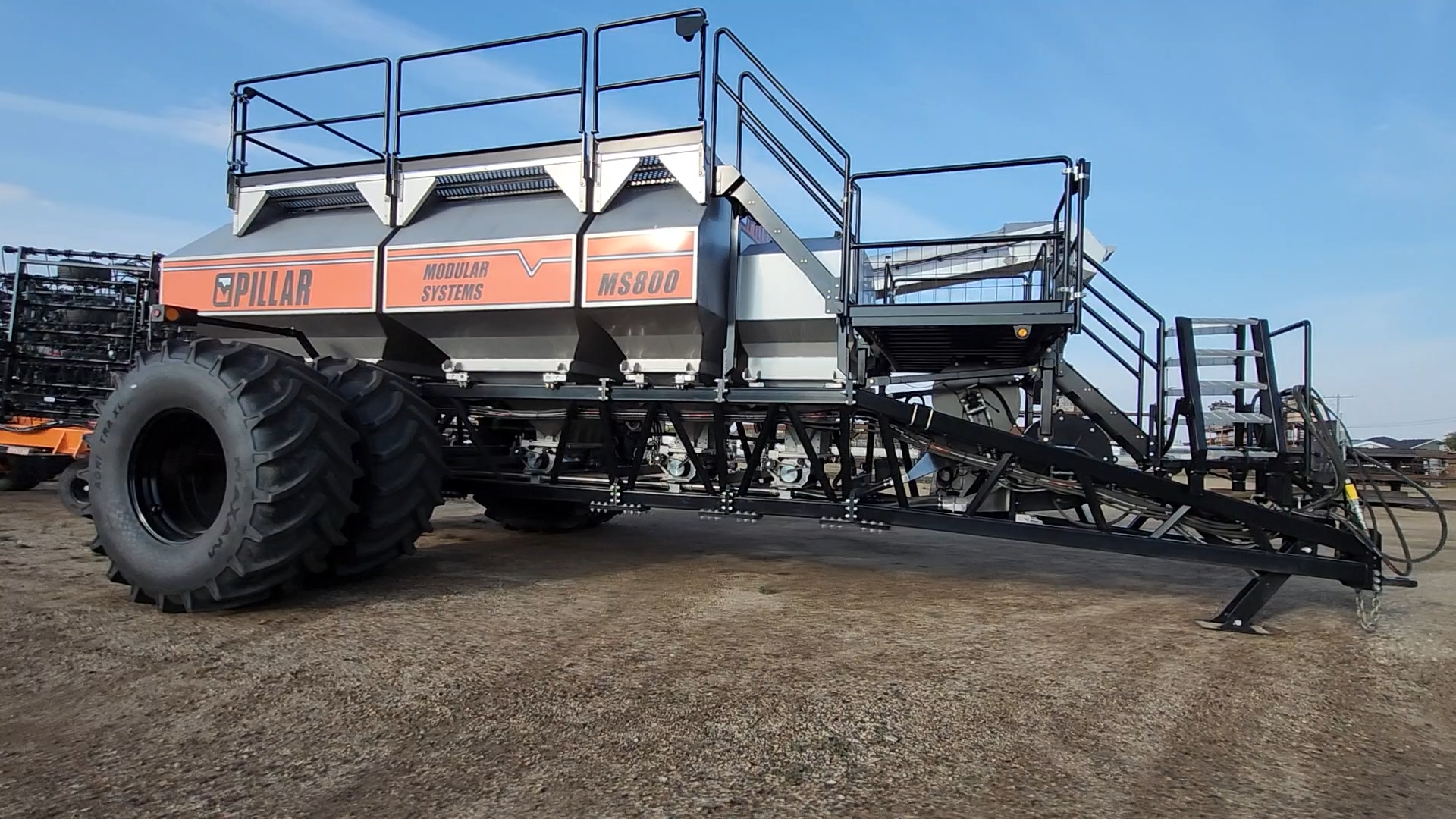

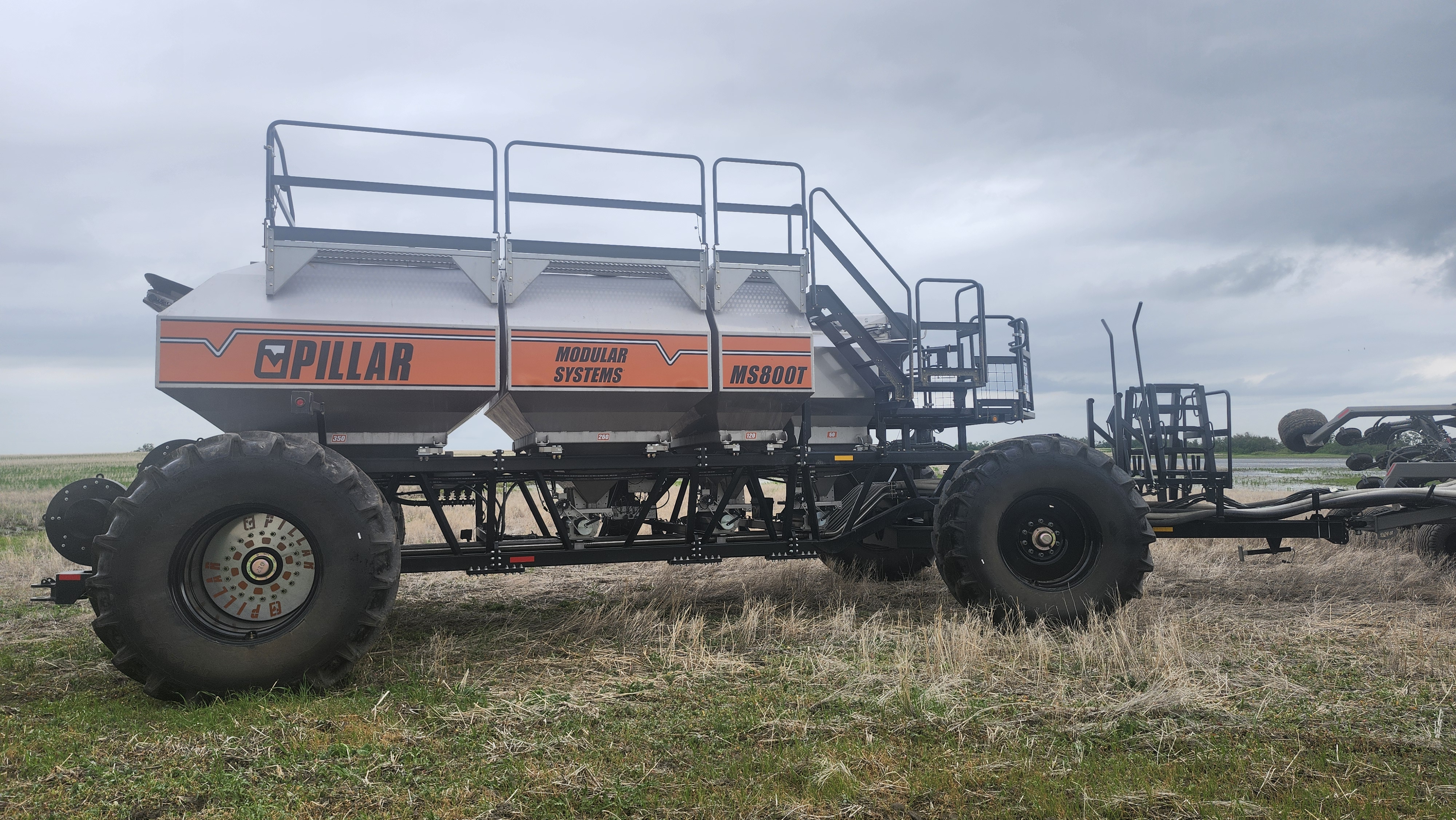

MS Air Cart

The Pillar Air Cart is engineered to deliver dependable performance with a focus on precision, flexibility, and ease of use. Its modular stainless steel construction and proven metering system provide accurate product placement while simplifying filling, calibration, and operation.

Stainless steel construction

modular system

Multiple tank sizes, customizable configurations.

TBT & TBH Available

Most innovative seeding system available

The Pillar Air Cart features a modular stainless steel design built for flexibility, durability, and efficient operation. Designed to accommodate a wide range of crops and fertilizer applications, it combines proven metering technology with practical features that simplify filling, calibration, and transport.

‍Features
‍Stainless steel tanks, pipes, meters, and conveyor
Independent tank scales

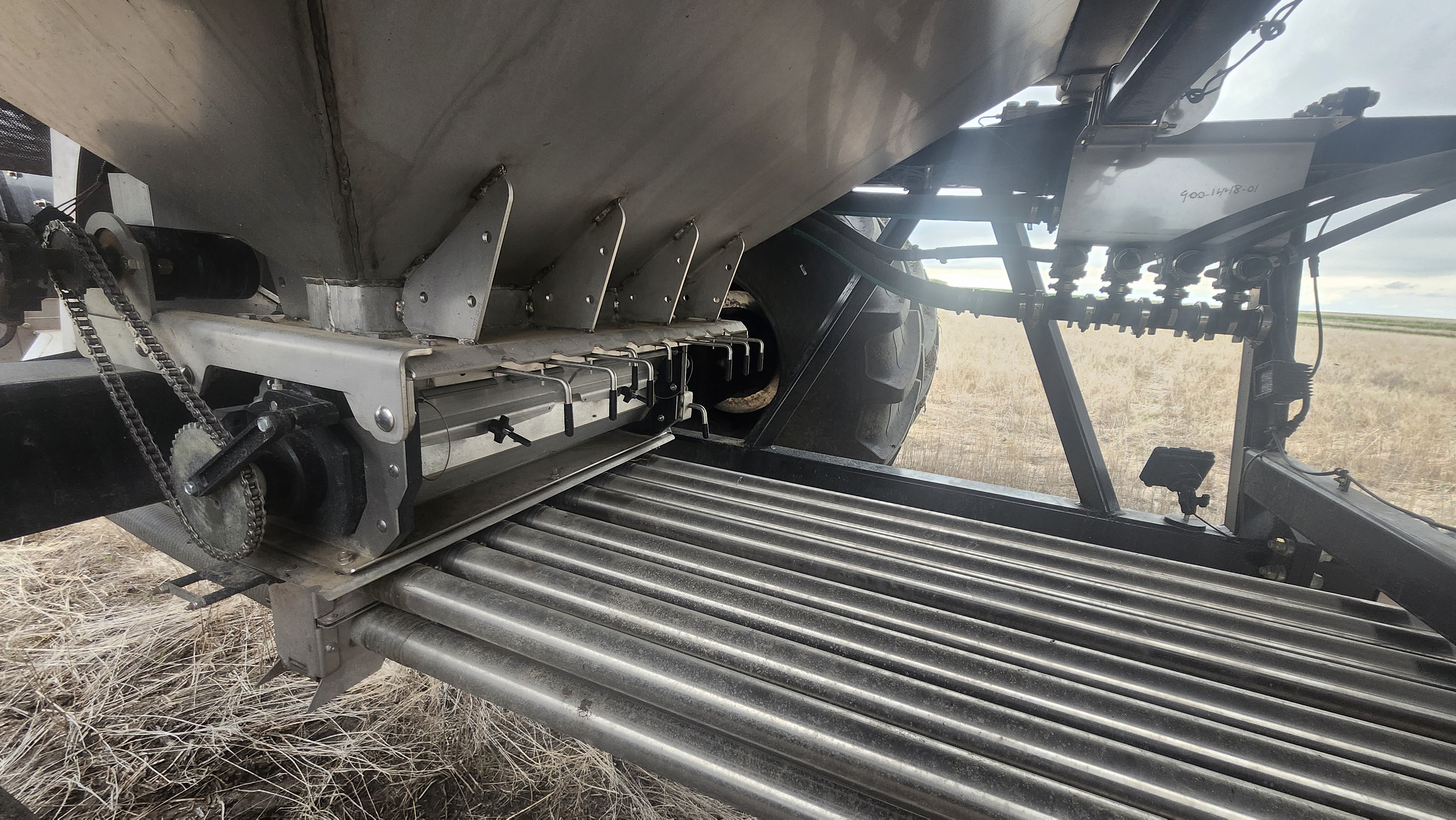

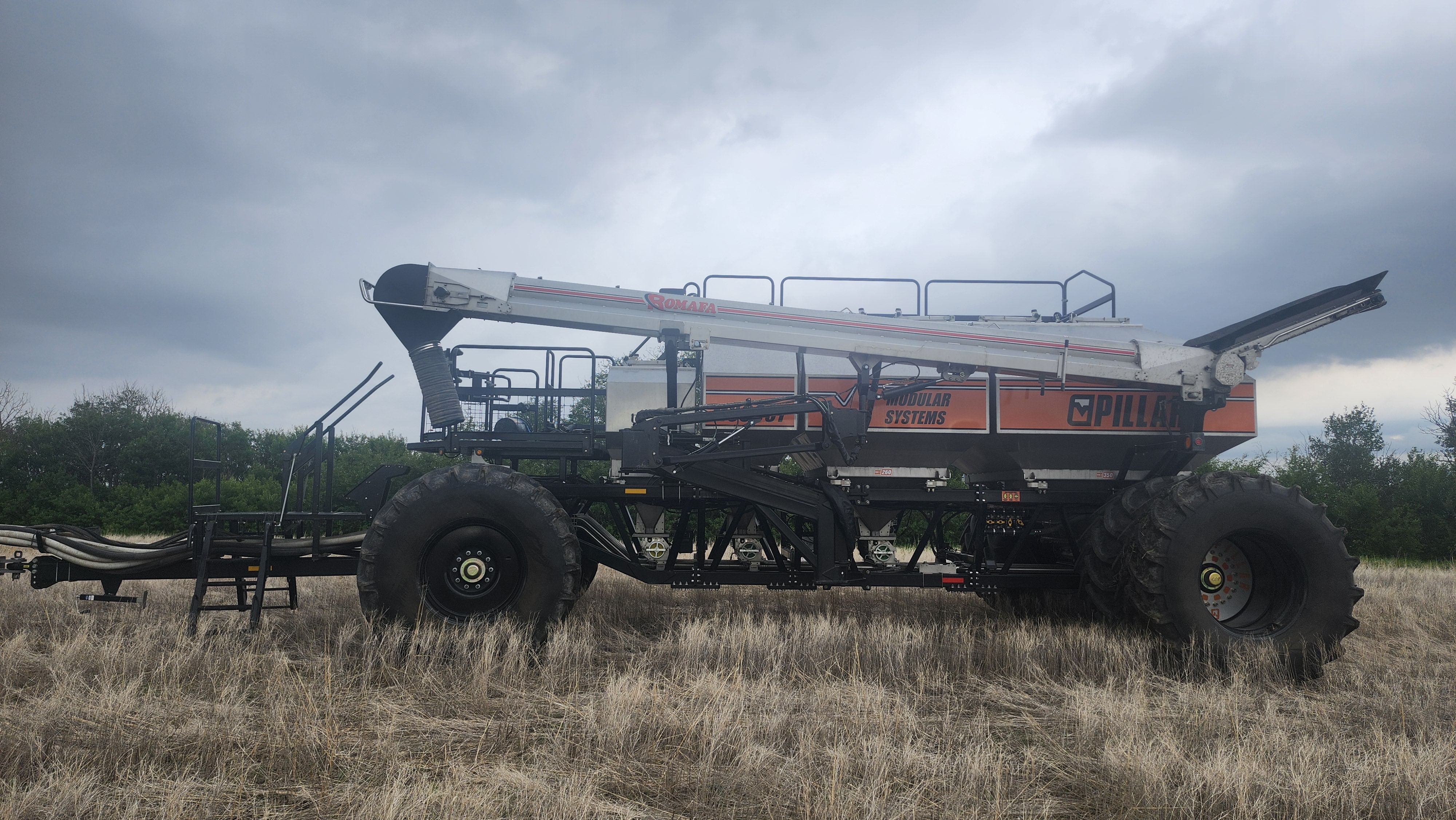

Conveyor loading system

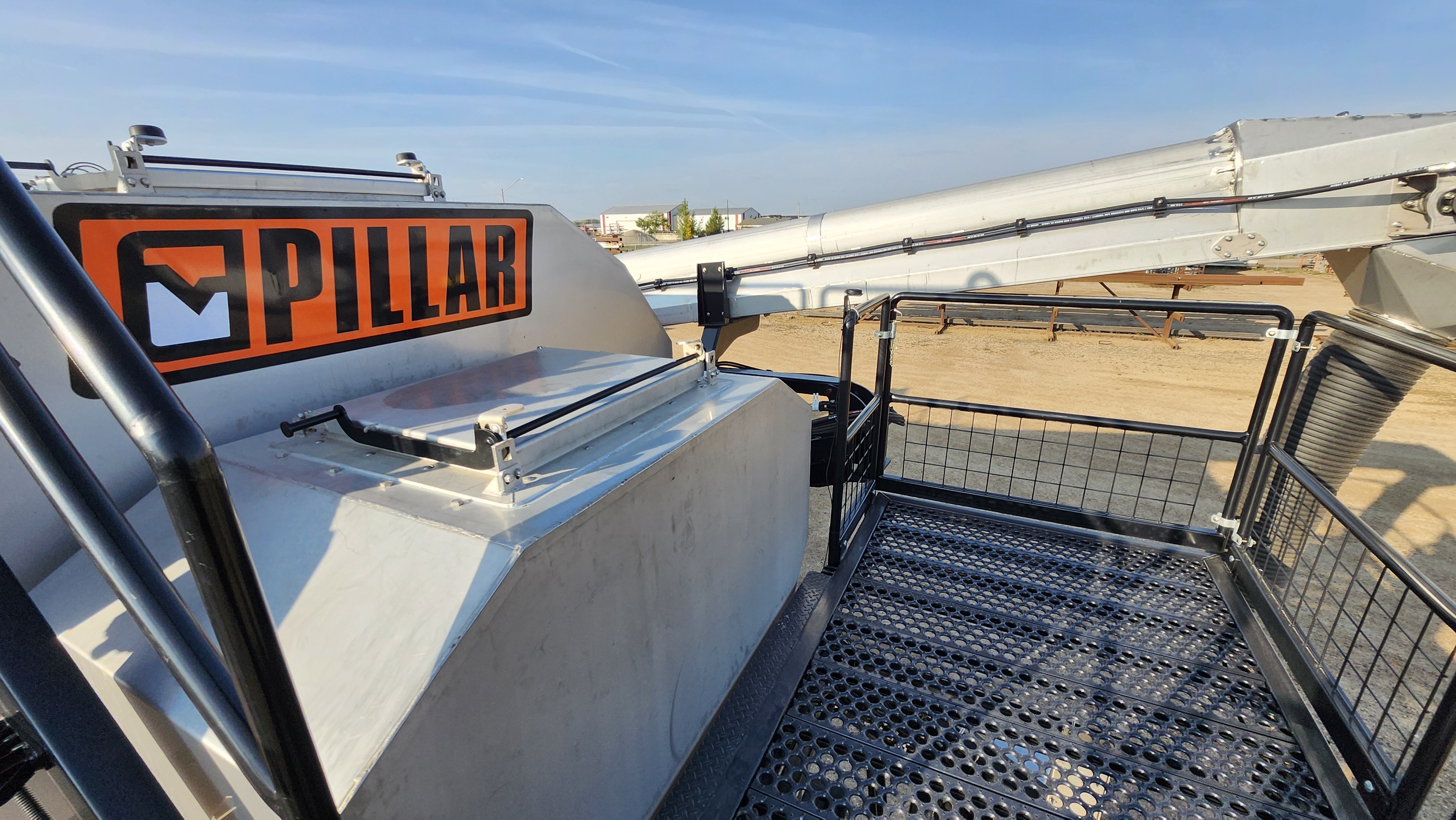

Large front mounting platform
Dual 800 or LSW 1400 tires
Wide lids for easy filling
60-bushel seed tank
Gate access for convenient pallet loading

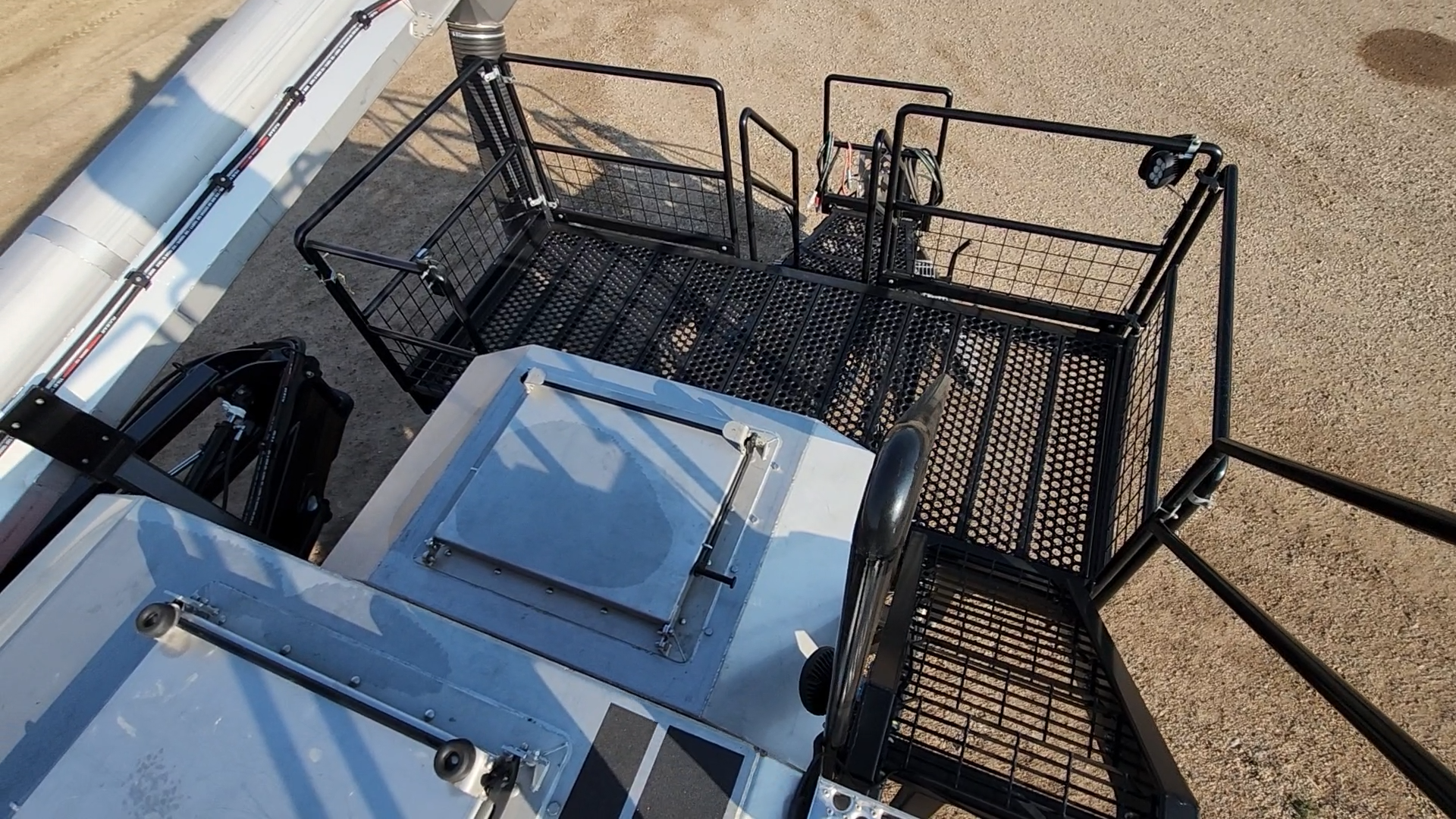

Large Front mounting platform

60 Bushel seed tank

Gate access for pallet loading

Key features and specifications

Scroll left to view all model specifications.

Brochure
All dimensions listed are for transport position.
Brochure
30-10
30-12
40-10
40-12
50-10
50-12
60-10
60-12
Weight
23,100 lb
(10,478 kg)
22,050 lb
(10,002 kg)
30,232 lb
(13,713 kg)
28,632 lb
(12,987 kg)
40,252 lb
(18,258 kg)
38,400 lb
(17,418 kg)
43,735 lb
(19,838 kg)
41,513 lb
(18,829 kg)
Height
12' 7"
(3.84 m)
12' 7"
(3.84 m)
16'6"
(5.03 m)
16'6"
(5.03 m)
16'6"
(5.03 m)
16'6"
(5.03 m)
16' 6"
(5.03 m)
16' 6"
(5.03 m)
Length
29' 5"
(8.97 m)
29' 5"
(8.97 m)
29' 5"
(8.97 m)
29' 5"
(8.97 m)
29' 5"
(8.97 m)
29' 5"
(8.97 m)
29' 5"
(8.97 m)
29' 5"
(8.97 m)
Width
20' 2"
(6.15 m)
20' 2"
(6.15 m)
20' 2"
(6.15 m)
20' 2"
(6.15 m)
23' 6"
(7.16 m)
23' 6"
(7.16 m)
23' 6"
(7.16 m)
23' 6"
(7.16 m)
